Figure 4: Spikes and calcium signaling reveal similar CEBRA embeddings

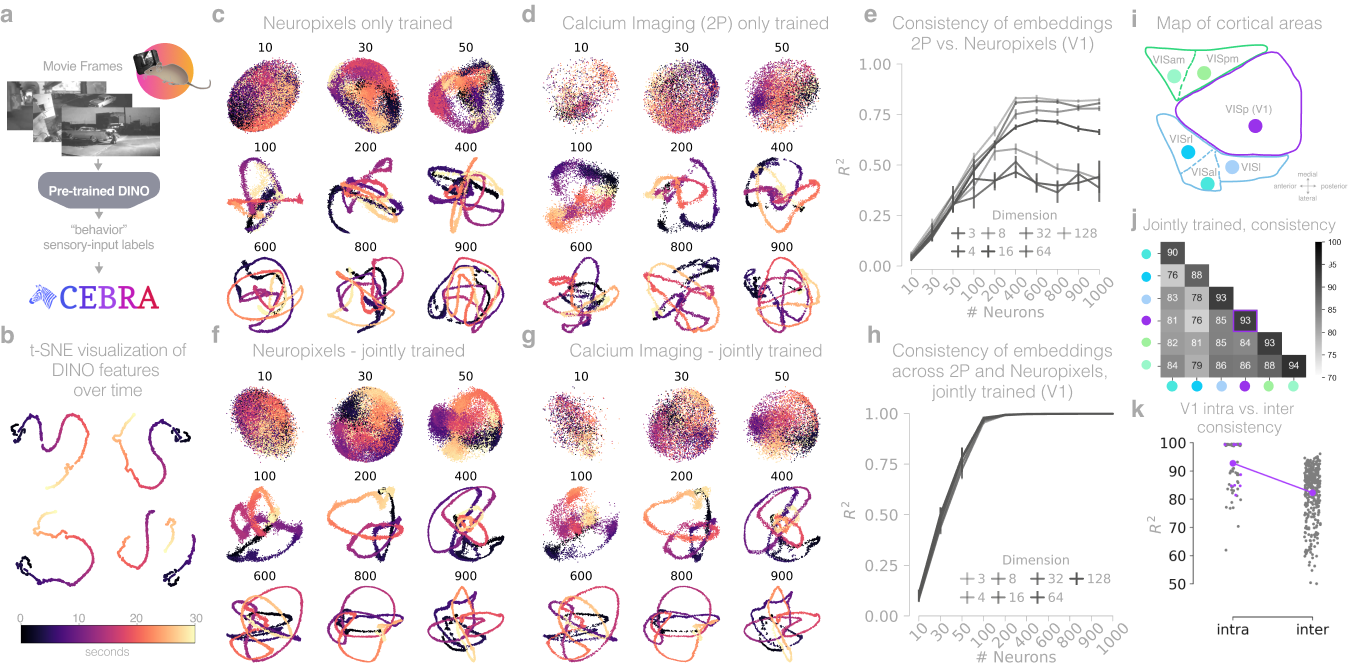

For reference, here is the full figure

import plot and data loading dependencies

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
import pandas as pd
import seaborn as sns

data = pd.read_hdf("../data/Figure4Revision.h5", key="data")

consistency = data["consistency"]
viz = data["visualization"]

dims = [3, 4, 8, 16, 32, 64, 128]
num_neurons = [10, 30, 50, 100, 200, 400, 600, 800, 900, 1000]

Figure 4 c,d, f,g

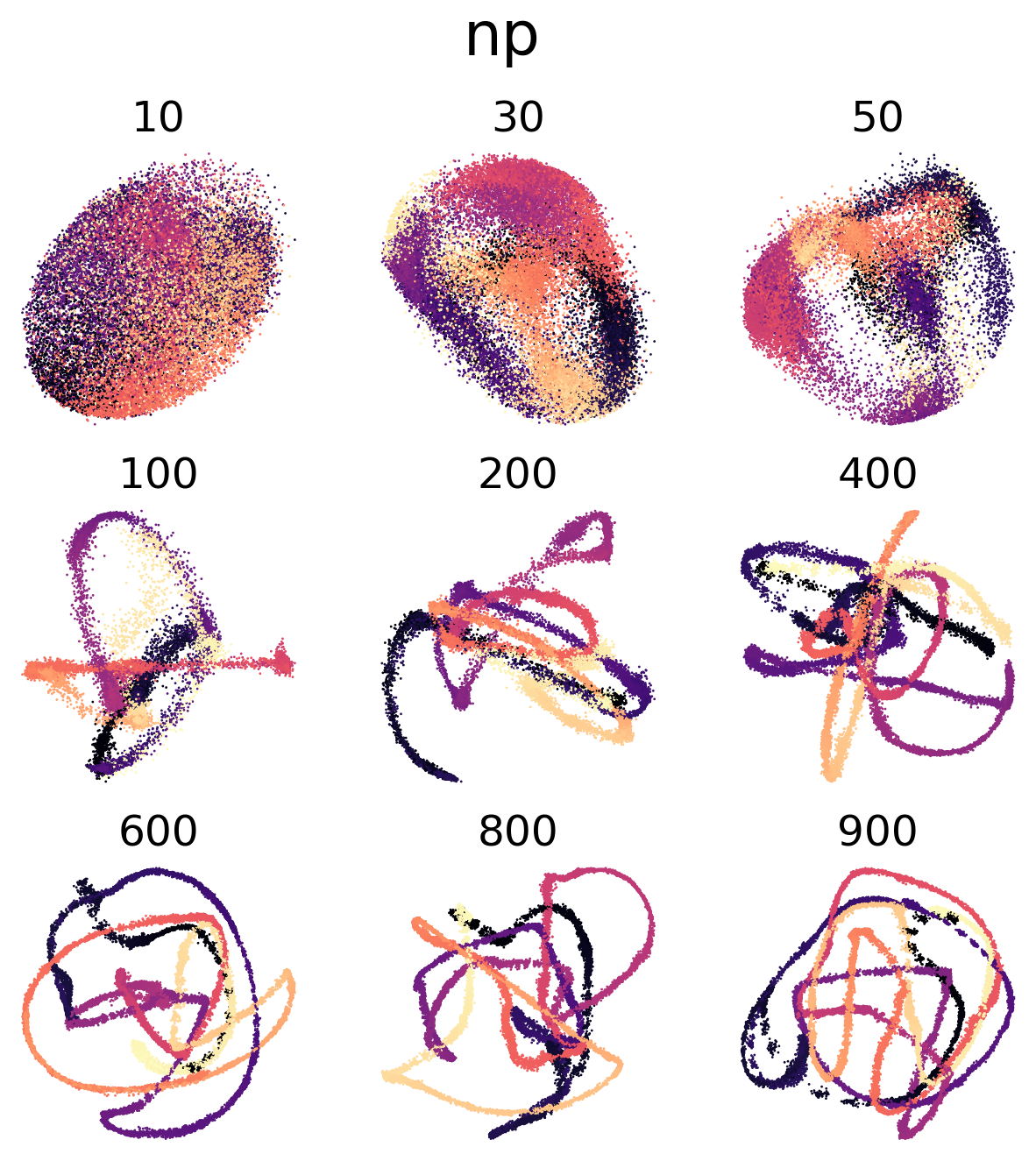

• (c,d) Visualization of trained 8D latent CEBRA-Behavior embeddings with Neuropixels data or calcium imaging, respectively. The numbers on top of each embedding is the number of neurons subsampled from the multi-session concatenated dataset. Color map is the time in the movie (dark to light).

• (f,g) Visualization of CEBRA-Behavior embedding (8D) trained with Neuropixels and calcium imaging, jointly. Color map is the same as above.

modality = ["ca", "np", "joint-ca", "joint-np"]

for m in modality:
    fig = plt.figure(figsize=(15, 15))
    plt.suptitle(f"{m}", fontsize=50)
    for i in range(9):
        ax = fig.add_subplot(3, 3, i + 1)
        if "np" in m:
            label = np.repeat(np.arange(900), 4)
        else:
            label = np.arange(900)
        ax.scatter(
            viz[m][num_neurons[i]][:, 0],
            viz[m][num_neurons[i]][:, 1],
            s=1,
            c=np.tile(label, 10),
            cmap="magma",
        )
        ax.set_title(f"{num_neurons[i]}", fontsize=35)
        plt.xticks([])
        plt.yticks([])
        plt.axis("off")

Figure 4 e, h

• 5. Linear consistency between embeddings trained with either calcium imaging data or Neuropixels data.

• 8. Linear consistency between embeddings of calcium imaging and Neuropixels which were trained jointly.

scale = 1.25
plt.figure(figsize=(2 * scale, 2 * scale), dpi=300)
ax = plt.gca()

for i, d in enumerate(dims):
    mean = consistency["individual"]["mean"][d]
    err = consistency["individual"]["err"][d]
    ax.errorbar(
        np.arange(10),
        mean,
        err,
        label=d,
        color="black",
        alpha=(i + 1) * 0.1,
        markersize=20,
        linewidth=3,
    )

ax.spines["right"].set_visible(False)
ax.spines["top"].set_visible(False)
plt.xticks(np.arange(10), [10, 30, 50, 100, 200, 400, 600, 800, 900, 1000], rotation=45)

# all_ticks = [10, 30, 50, 100, 200, 400, 600, 800, 900, 1000]
# i = [0, 2, 4, 6, 8]
# plt.xticks(i, [all_ticks[i_] for i_ in i])
# plt.xscale("log")

plt.yticks(np.linspace(0, 1.0, 5))
plt.xlabel("# Neurons")
plt.ylabel("$R^2$")
plt.title("Consistency between \nindividually trained Ca/Neuropixel ")
plt.legend(
    loc="lower right",
    title="Dimension",
    frameon=False,
    ncol=4,
    handlelength=1,
    markerscale=0.0,
    labelspacing=0.5,
    columnspacing=0.5,
    handletextpad=0.3,
    fontsize="small",
    title_fontsize="small",
)
sns.despine(trim=True)
plt.savefig("NP_CA_invidiual.svg", bbox_inches="tight", transparent=True)
plt.show()

scale = 1.25
plt.figure(figsize=(2 * scale, 2 * scale), dpi=300)
ax = plt.gca()

dims = [3, 4, 8, 16, 32, 64, 128]

for i, d in enumerate(dims):
    mean = consistency["joint"]["mean"][d]
    err = consistency["joint"]["err"][d]
    ax.errorbar(
        np.arange(10),
        mean,
        err,
        label=d,
        color="black",
        alpha=(i + 1) * 0.1,
        markersize=20,
        linewidth=3,
    )


ax.spines["right"].set_visible(False)
ax.spines["top"].set_visible(False)
# plt.xticks(np.arange(10), num_neurons)

all_ticks = [10, 30, 50, 100, 200, 400, 600, 800, 900, 1000]
assert num_neurons == all_ticks
i = [0, 2, 4, 6, 8]
plt.xticks(np.arange(10), [10, 30, 50, 100, 200, 400, 600, 800, 900, 1000], rotation=45)
# plt.xticks(i, [all_ticks[i_] for i_ in i])

plt.yticks(np.linspace(0, 1.0, 5))
plt.xlabel("# Neurons")
plt.ylabel("$R^2$")
plt.title("Consistency between\njointly trained Ca/Neuropixel ")
plt.legend(
    loc="lower right",
    title="Dimension",
    frameon=False,
    ncol=4,
    handlelength=1,
    markerscale=0.0,
    labelspacing=0.5,
    columnspacing=0.5,
    handletextpad=0.3,
    fontsize="small",
    title_fontsize="small",
)
sns.despine(trim=True)
plt.savefig("NP_CA_jointly.svg", bbox_inches="tight", transparent=True)
plt.show()

v1_color = "#9932EB"


def make_heatmap_from_df(df, title, vmax, vmin, white=False):
    upper = df.mask(np.triu(np.ones((6, 6)), 1).astype(bool))
    lower = df.mask(np.tril(np.ones((6, 6)), -1).astype(bool))
    tri_mean = pd.concat([upper, lower.T]).groupby(level=0).mean()
    df = tri_mean.reindex(
        index=["VISal", "VISrl", "VISl", "VISp", "VISam", "VISpm"],
        columns=["VISal", "VISrl", "VISl", "VISp", "VISam", "VISpm"],
    )
    fig = plt.figure(figsize=(4, 3))
    # plt.title(title)

    mask = np.triu(np.ones((6, 6)), 1)
    p = sns.heatmap(
        df,
        annot=True,
        vmin=vmin,
        vmax=vmax,
        cmap="gray_r",
        mask=mask,
        annot_kws={"size": 12},
        cbar_kws=dict(ticks=np.arange(vmin, vmax + 5, 5)),
    )
    if white:
        _c = "white"
    else:
        _c = "k"
    plt.yticks(rotation=0, color=_c)
    plt.xticks(color=_c)
    for a in p.axes.get_yticklines():
        a.set_color(_c)
    for a in p.axes.get_xticklines():
        a.set_color(_c)
    cbar = p.figure.axes[-1]
    cbar.yaxis.label.set_color(_c)
    cbar.tick_params(color=_c, labelcolor=_c)
    plt.show()


def make_line_strip_from_df(df, title, vmin, vmax, white=False):

    if white:
        _c = "white"
    else:
        _c = "k"

    def make_comparison(df, area):
        areas = df["area_type"].unique()
        inter_area = areas[[(area in a) and ("-" in a) for a in areas]]
        intra_median = df[(df["area_type"] == area) & (df["type"] == "intra")].mean()
        non_related_inter_median = df[
            (df["area_type"] == inter_area[0]) | (df["area_type"] == inter_area[1])
        ].mean()
        related_inter_median = df[
            (df["area_type"] == area) & (df["type"] == "inter")
        ].mean()
        return intra_median, related_inter_median, non_related_inter_median

    area_type = df["area"]
    intra = df["intra"]
    inter = df["inter"]
    pair_type = ["intra"] * len(intra) + ["inter"] * len(inter)
    group = ["else" if "-" in a else a for a in area_type]
    color = [
        v1_color if (p == "intra" and c == "primary") else "gray"
        for p, c in zip(pair_type, area_type)
    ]
    fig = plt.figure(figsize=(3, 3))
    sns.set_style("ticks")

    # Set your custom color palette
    # sns.set_palette(sns.color_palette(COLORS))
    ax = plt.subplot(111)

    ax.set_yticks(np.linspace(0, 100, 11))
    plt.ylim(vmin, vmax)
    plt.xlim(-1, 2)
    ax.set_xticks([0, 1])
    ax.set_xticklabels(["intra", "inter"], color=_c)
    ax.tick_params(axis="both", which="major", labelsize=15)
    sns.despine(
        left=False, right=True, bottom=False, top=True, trim=True, offset={"bottom": 20}
    )
    d = pd.DataFrame(
        {
            "value": np.concatenate([intra.value, inter.value]),
            "color": color,
            "group": group,
            "type": ["intra"] * len(intra) + ["inter"] * len(inter),
            "area_type": area_type,
            "area1": np.concatenate([intra.Area1, inter.Area1]),
            "area2": np.concatenate([intra.Area2, inter.Area2]),
        }
    )
    d = d.sort_values("color", ascending=False)
    d = d.sort_values("type", ascending=False)
    plot = sns.stripplot(
        x="type",
        y="value",
        data=d,
        ax=ax,
        s=3,
        zorder=0,
        hue="color",
        palette={"gray": "gray", v1_color: v1_color},
    )

    plt.ylabel("$R^2$", fontsize=20, color=_c)
    ax.spines["left"].set_color(_c)
    ax.spines["bottom"].set_color(_c)
    intra_median, related_inter_median, non_related_inter_median = make_comparison(
        d, "primary"
    )
    ax.plot([intra_median, non_related_inter_median], marker="o", color=v1_color)
    plt.legend([], [], frameon=False)
    for a in plot.axes.get_yticklines():
        a.set_color(_c)
    for a in plot.axes.get_xticklines():
        a.set_color(_c)

    plt.yticks(color=_c)
    plt.xticks(color=_c)

    plt.show()

Figure 4 j

• CEBRA-Behavior 32D model jointly trained with 2P+NP with 400 neurons then consistency measured within or across areas (2P vs. NP) across 2 unique sets of disjoint neurons for 3 seeds.

make_heatmap_from_df(
    pd.DataFrame(data["cortices_consistency"]["joint_cortices"]),
    "Joint Ca-Joint NP",
    100,
    70,
)

Figure 4 k

• intra-V1 consistency measurement vs. all inter-area vs. V1 comparison. Purple dots indicate mean of V1 intra-V1 consistency (across n=120 runs) and inter-V1 consistency (n=120 runs). Intra-V1 consistency is significantly higher than inter-area consistency (one-sided Welch’s t-test, T=4.55, p=0.00019)

make_line_strip_from_df(
    data["cortices_consistency"]["joint_v1"], "V1 inter-intra", 50, 100
)

/tmp/ipykernel_82996/3790038935.py:52: FutureWarning: The default value of numeric_only in DataFrame.mean is deprecated. In a future version, it will default to False. In addition, specifying 'numeric_only=None' is deprecated. Select only valid columns or specify the value of numeric_only to silence this warning.
  intra_median = df[(df["area_type"] == area) & (df["type"] == "intra")].mean()
/tmp/ipykernel_82996/3790038935.py:55: FutureWarning: The default value of numeric_only in DataFrame.mean is deprecated. In a future version, it will default to False. In addition, specifying 'numeric_only=None' is deprecated. Select only valid columns or specify the value of numeric_only to silence this warning.
  ].mean()

from scipy import stats

intra = data["cortices_consistency"]["joint_v1"]["intra"]
intra_v1 = intra[(intra["Area1"] == "VISp") & (intra["Area2"] == "VISp")][
    "value"
].tolist()
inter = data["cortices_consistency"]["joint_v1"]["inter"]
inter_v1 = inter[(inter["Area1"] == "VISp") | (inter["Area2"] == "VISp")][
    "value"
].tolist()
print(stats.ttest_ind(intra_v1, inter_v1, equal_var=False, alternative="greater"))

Ttest_indResult(statistic=4.558377136034692, pvalue=0.00019529598037276567)
